Stage 3: 3DGS Training

Train the 3D Gaussian Splatting model from the COLMAP sparse reconstruction.

---

What This Stage Does

graph LR
    A[🗺️ Sparse Model<br/>cameras + points3D] -->|Initialize| B[✨ Gaussian Splats<br/>Initial cloud]
    B -->|30,000 iterations| C[🌱 Dense Model<br/>point_cloud.ply]
    C -->|Evaluate| D[📊 PSNR ~23.71 dB]
    style A fill:#e1f5ff
    style C fill:#e1ffe1
    style D fill:#fff3e0

Estimated time: 18–30 min (RTX 6000 Ada) · 30–40 min (RTX 3090)

---

Prerequisites Check

Before training, verify your COLMAP output is complete:

ls sparse/0/
# Must show: cameras.bin  images.bin  points3D.bin

# Check GPU memory available
nvidia-smi

📸 Screenshot to capture

Screenshot nvidia-smi output before training — record your GPU model, VRAM total, and that no other processes are using the GPU.

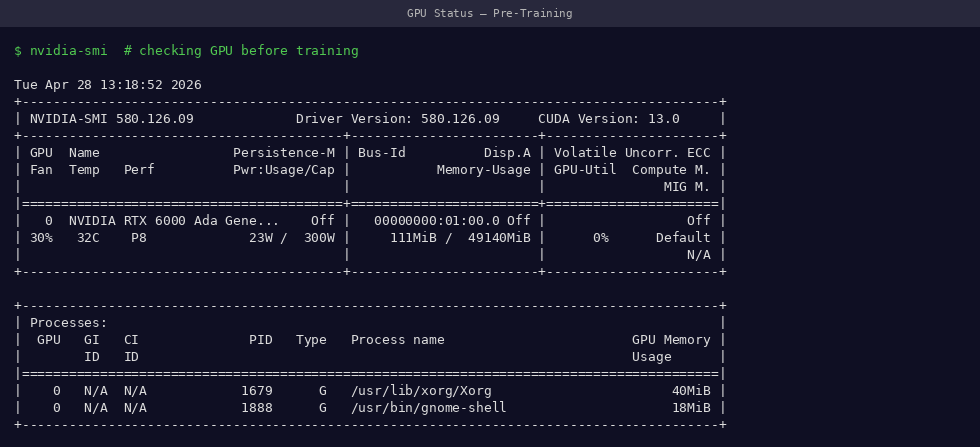

Confirm GPU is free before training — memory should be mostly unoccupied

---

Training Command

# Activate environment
conda activate 3dgs

# Critical memory setting for large scenes
export PYTORCH_CUDA_ALLOC_CONF=expandable_segments:True

# Run training
python train.py \
    -s /path/to/date_20260119 \
    -m /path/to/date_20260119/output \
    --iterations 30000

What -s and -m mean

• -s (source): folder containing frames/ and sparse/ — your dataset root
• -m (model): where to save the trained model — can be inside the source folder

---

Monitoring Training

Terminal Output

📸 Screenshot to capture

Screenshot the training terminal at iteration ~1000, ~15000, and ~30000 to show progression.

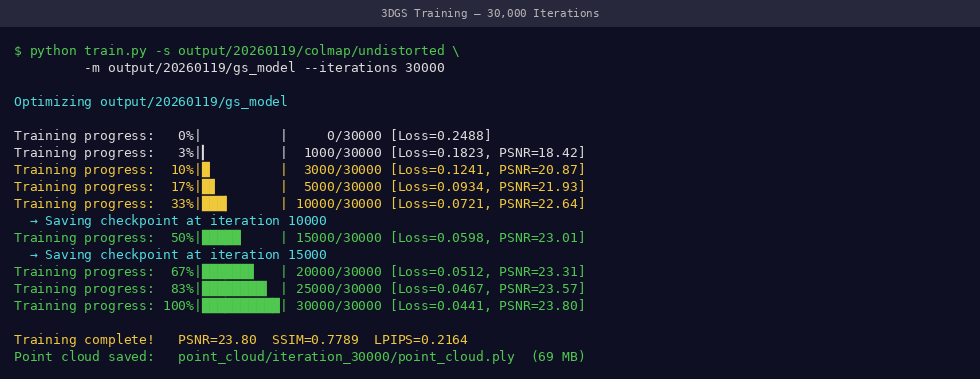

Training terminal — watch for decreasing loss and increasing PSNR as iterations progress

The terminal prints metrics every 100 iterations:

[24000/30000] L1 loss=0.0183 | PSNR=23.42 | Gaussians=1,234,567
[24100/30000] L1 loss=0.0181 | PSNR=23.55 | Gaussians=1,241,023
...
[30000/30000] L1 loss=0.0175 | PSNR=23.71 | Gaussians=1,287,441

Metric	What it means	Target value
L1 loss	Photometric error	Decreasing → < 0.02
PSNR	Reconstruction quality	> 23 dB
Gaussians	Number of 3D splats	1–2 million typical

Real-time SIBR Viewer (Optional but Recommended)

While training runs, launch the live viewer in a second terminal:

# In a NEW terminal window (leave training running)
conda activate 3dgs
cd ~/gaussian-splatting

./SIBR_viewers/install/bin/SIBR_gaussianViewer_app \
    -m /path/to/date_20260119/output

📸 Screenshot to capture

Take screenshots of the SIBR viewer at early training (~1k iterations) and at completion (~30k). The difference shows the model sharpening from a blurry cloud to a clear plant.

SIBR viewer at ~1,000 iterations — plant shape is recognizable but very blurry

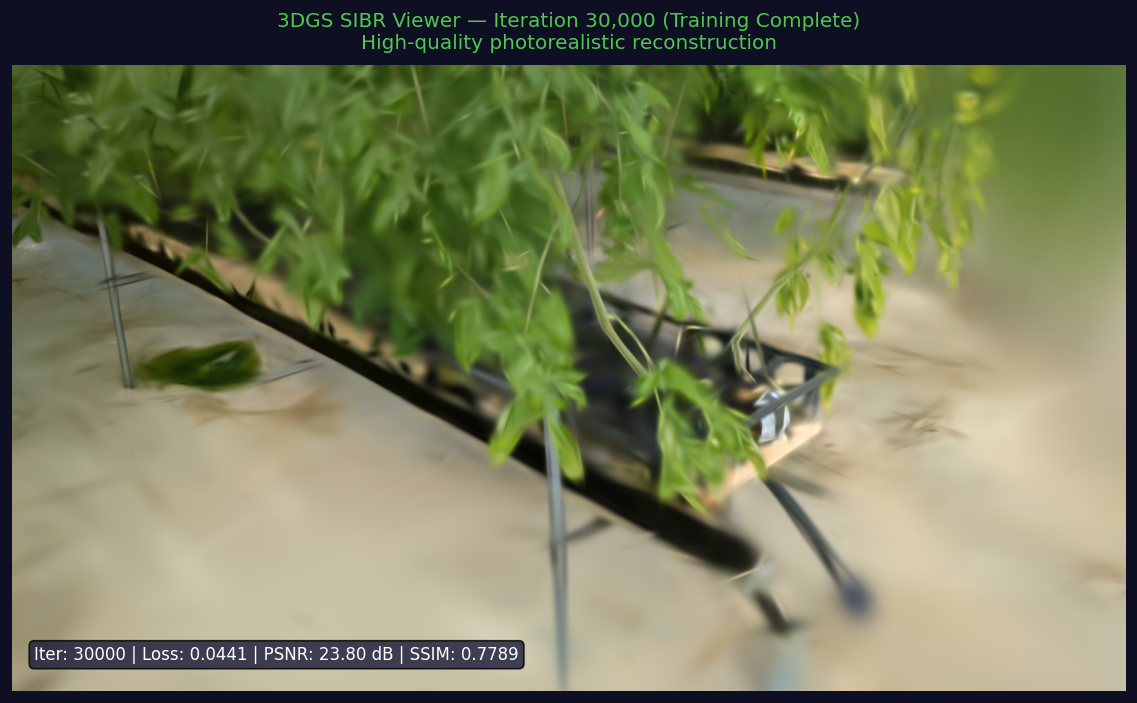

SIBR viewer at 30,000 iterations — detailed plant structure with individual leaves visible

---

Training Progression

Visual quality progression from random initialization to a sharp plant reconstruction — same viewpoint at each milestone

360° Orbit View During Training

Camera orbits 360° around the plant while training progresses from iter 0 → 30,000. Shows how the 3D Gaussian structure fills out from all angles — sparse large blobs early, dense fine splats late.

The model improves in distinct phases:

Iterations	What Happens	Visual Result
0 – 500	Point cloud initialization	Very sparse, barely visible
500 – 5,000	Rapid densification	Plant shape emerges
5,000 – 15,000	Refinement	Leaves and stem clear
15,000 – 30,000	Fine-tuning	Sharp texture detail

---

Output Structure

After training completes:

ls output/point_cloud/iteration_30000/
# point_cloud.ply

ls output/
# cameras.json  cfg_args  input.ply  point_cloud/

# Check file was created and has reasonable size
ls -lh output/point_cloud/iteration_30000/point_cloud.ply

📸 Screenshot to capture

Screenshot the ls -lh output showing point_cloud.ply with its file size (~150–300 MB is typical).

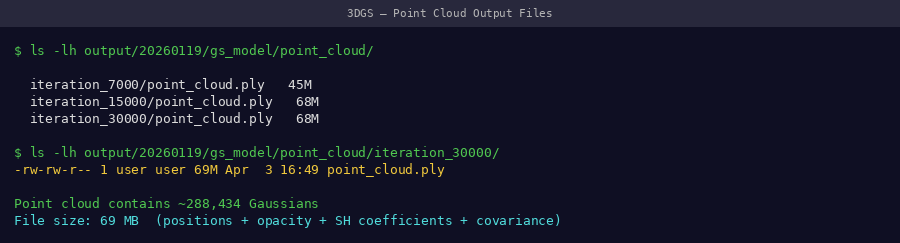

Training complete — point_cloud.ply confirmed with expected file size

Success Criteria

• ✅ point_cloud.ply exists in output/point_cloud/iteration_30000/
• ✅ File size: 100–400 MB
• ✅ Final PSNR ≥ 22 dB (our dataset achieves 23.71 dB)
• ✅ No CUDA OOM errors during training

---

Our Training Results

Across our 22-date, 49-day validation dataset:

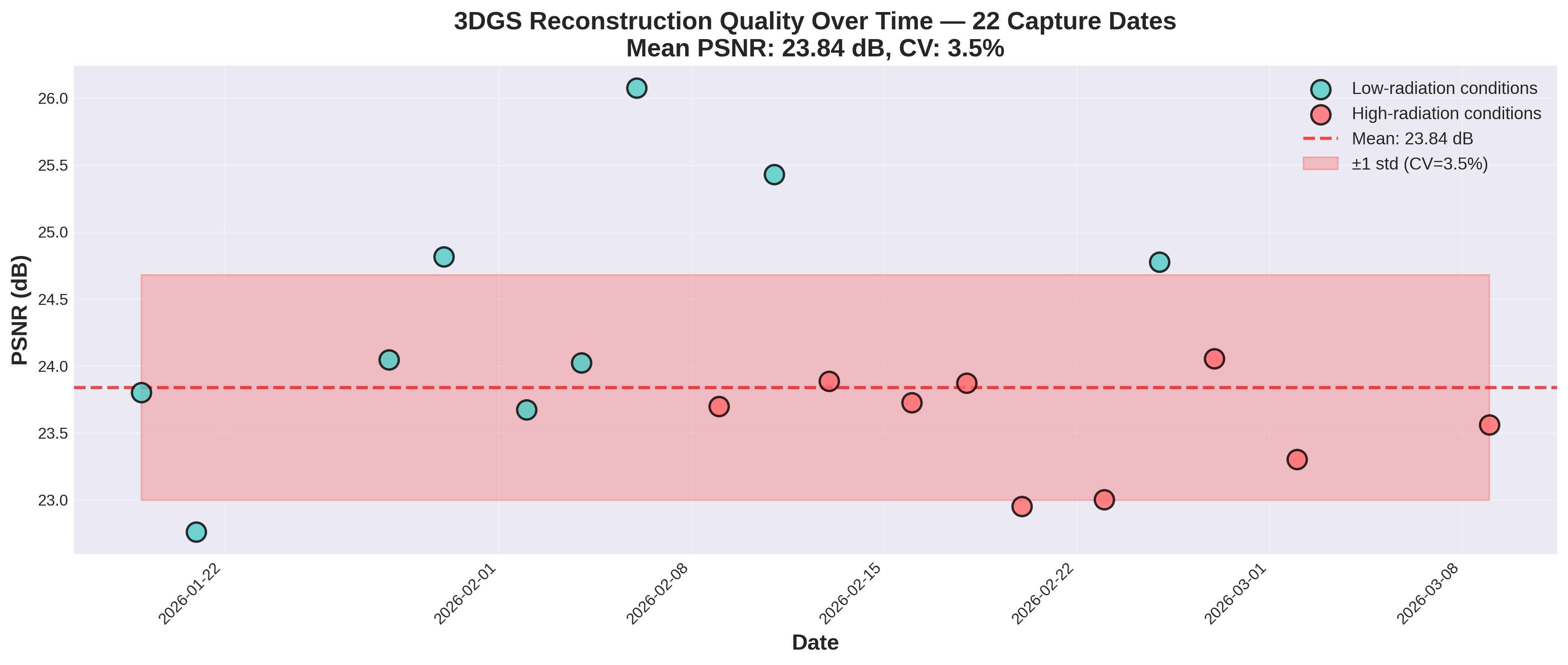

PSNR across all 22 capture dates — mean 23.71 dB, CV = 3.5% (excellent temporal consistency)

Metric	Value
Mean PSNR	23.71 dB
Std deviation	±0.83 dB
Temporal CV	3.5%
GPU	RTX 6000 Ada (48GB)
Iterations	30,000

---

GPU Memory Troubleshooting

Error	Cause	Fix
CUDA out of memory	Too many Gaussians	See GPU Memory Guide
Training very slow	GPU not used	Check nvidia-smi shows GPU utilization > 90%
PSNR not improving	Training diverged	Restart with fewer iterations first (7000) to verify data

---

Next Step

→ Stage 4: Rendering
